Decorative stainless steel pipe specifications & standard size chart

18/09/2026

Decorative stainless steel pipe specifications are determined based on outer diameter, wall thickness, steel grade, shape, and surface finish. Material selection should be guided by the intended application, load-bearing requirements, and aesthetic demands of each specific project. In this article, Son Ha SSP summarizes the most updated specification chart.

1. What Parameters Define Decorative Stainless Steel Pipe Specifications?

Decorative stainless steel tubing specifications are typically defined by three core parameters: diameter, wall thickness, and material grade. Specifically:

Outer Diameter (OD / Ø): Represents the overall external dimension of the pipe, commonly denoted by Ø or Phi (e.g., Ø19 mm, Ø25.4 mm, or Ø50.8 mm).
Wall Thickness (mm): A key structural factor influencing rigidity, total weight, and impact resistance during service.
Steel Grade: Stainless steel 201, 304, and 316 are the three most widely selected materials. Grades 304 and 316 offer superior corrosion resistance, whereas grade 201 provides a cost-effective solution suitable for low-corrosion indoor environments

2. Latest Decorative Stainless Steel Pipe Specification Chart (2026)

Below is the reference specification chart for decorative stainless steel tubing provided by Son Ha SSP. Depending on the steel grade, manufacturing standards, and custom order requirements, actual dimensions and wall thicknesses may vary

*Note: The specifications in this table are for reference purposes. For technical consultation and accurate weight confirmation per product specification, please contact Son Ha SSP via Hotline at (+84) 986434303

3. How to Choose the Right Decorative Stainless Steel Pipe Specifications

Selecting the correct specification requires evaluating more than just outer dimensions. Buyers should simultaneously consider material grade, wall thickness, tube geometry, surface finish, and end-use application to ensure full compliance with engineering and aesthetic standards

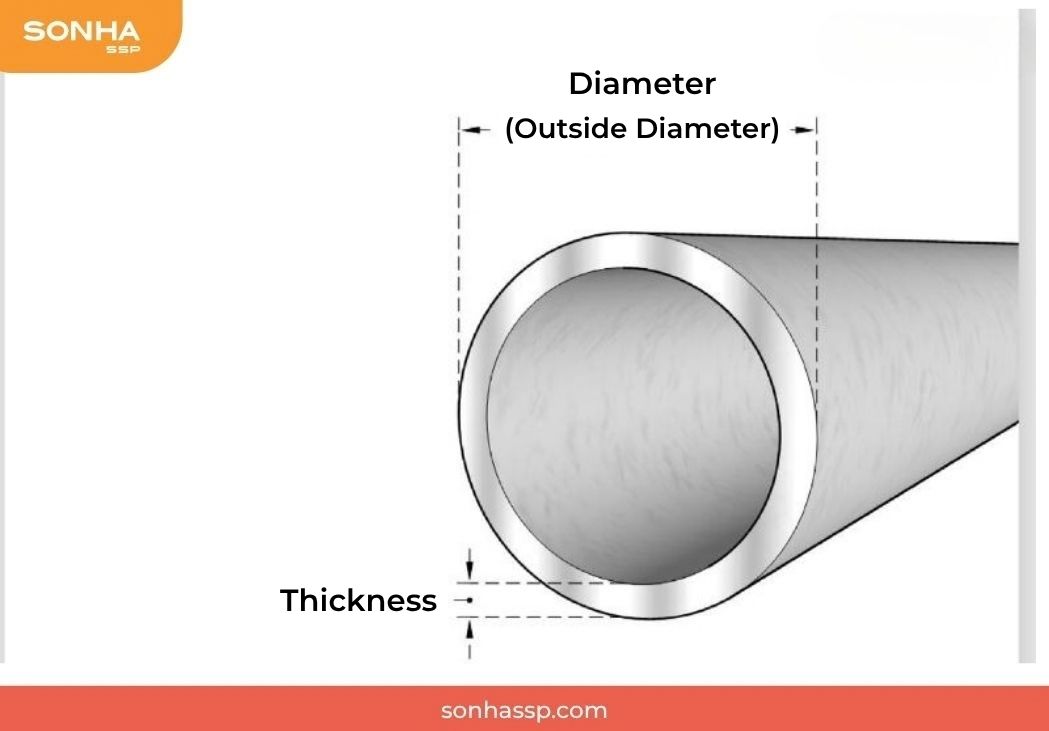

How to calculate specifications for decorative stainless steel pipes

3.1 Selecting the Steel Grade (Material)

SUS 304: The most popular choice for general applications due to its optimal balance between aesthetic appeal, corrosion resistance, and cost efficiency.
SUS 316: Recommended for highly corrosive environments – especially those exposed to salts or chlorides – thanks to its molybdenum content, which enhances pitting corrosion resistance compared to 304.
SUS 201: Ideal for indoor, dry applications with minimal moisture or chemical exposure to optimize overall material costs.

3.2 Selecting by Wall Thickness

Wall thickness directly determines structural strength and load-bearing capacity, typically ranging from 0.3 mm to 2.0 mm:

0.3 mm – 0.5 mm (Ultra-thin): Susceptible to denting; suited for picture frames, decorative trim, or non-load-bearing accent details.
0.6 mm – 0.9 mm (Medium): Ideal for home appliances, shelving units, dish racks, and low-impact indoor handrails.
1.0 mm – 2.0 mm (Thick & Robust): Designed for gates, doors, fences, canopy structures, and outdoor balustrades requiring high impact resistance.

3.3 Selecting by Shape and Size

Round Tubing: Commonly used for handrails, balustrades, decorative frameworks, and designs calling for smooth, curved contours.
Square & Rectangular Tubing: Best suited for structural frames, support racks, and architectural elements requiring crisp, modern lines.
Precision Fitting: Always verify exact outer dimensions and wall thickness against engineering drawings to ensure seamless compatibility with hardware accessories.

3.4 Selecting by Surface Finish

BA Finish (Bright Annealed): High mirror polish with strong light reflection, creating a bright and refined aesthetic suitable for high-end interior decor.
HL Finish (Hairline / Brushed): Features fine, uniform continuous longitudinal hairline scratches. Delivers a sleek, modern look, reduces visual glare, and minimizes visible fingerprints compared to mirror surfaces.

4. Son Ha SSP – Trusted Supplier of High-Quality Decorative Stainless Steel Pipes

Son Ha SSP – Vietnam’s leading stainless steel pipe supplier

Son Ha SSP is a premier manufacturer of stainless steel pipes and tubes in Vietnam. Backed by extensive industrial expertise, Son Ha SSP enforces strict quality control across every production stage:

Superior Surface Finish: Surface finishing options reach up to 600 Grit, producing smooth, brilliant surfaces for high-aesthetic architectural demands.
Diverse Product Range: Comprehensive combinations of sizes, wall thicknesses, steel grades, and finishes.
Excellent Fabricability: High ductility for bending, cutting, and welding according to complex design criteria.
Corrosion Resistance: Outstanding durability against oxidation when paired with the proper steel grade.

For product inquiries, technical size selection, or price quotes, contact Hotline (+84) 986434303 for assistance

Conclusion

Mastering decorative stainless steel pipe specifications is essential for ensuring structural integrity, longevity, and visual value in architectural projects. We hope this guide provides a complete overview of dimensions, specification charts, and practical selection insights.

Frequently Asked Questions (FAQ)

1. What is the standard length of a decorative stainless steel pipe?

The standard commercial length of a decorative stainless steel pipe in the market is 6 meters.

2. What is the wall thickness tolerance for decorative stainless steel pipes?

Under international standard ASTM A554 for ornamental tubing, the standard allowable wall thickness tolerance is typically ±10% to ±12.5% of nominal thickness.

3. What surface finishes are available for decorative stainless steel pipes?

The most common finishes are Mirror Bright Annealed (BA) and Hairline / Brushed (HL)
